Viscoplastic channel flow (Mosolov)

The Mosolov problem is the steady, pressure-driven flow of a Bingham (viscoplastic) fluid along a rectangular channel. Below a yield stress the material moves as an unsheared plug; the solver handles the non-linearity with a regularised effective viscosity inside the NonlinearMultigrid cycle. The viscoplastic-flow theory page covers the model; this page just runs it and looks at the output.

Running

examples/mosolov/ has no command line -- it solves the single hard-coded case aspect = 2, B = 0.24 (B is the Bingham number) and writes one netCDF file:

./build/examples/mosolov/mosolov
# wrote A2.00000B0.24000.nc

problem.write(3) stores three fields over the x / z grid: velocity (the axial velocity u), strain_rate (the shear-rate magnitude), and log_residual (log10 of the final PDE residual), plus the global attributes bingham_number, aspect_ratio and total_flux.

Visualising the results

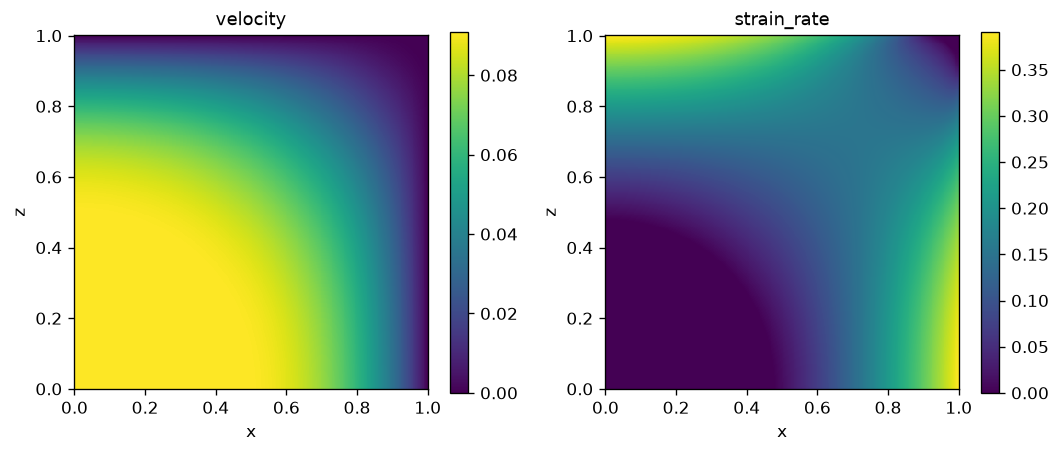

The two panels are the axial velocity and the strain-rate magnitude. The velocity field is a plug-like plateau across the channel core -- the unyielded region moving as a rigid body -- and drops to zero at the no-slip walls. The strain rate is near-zero throughout the plug and concentrates in thin layers along the walls, where the material has yielded and shears.

Regenerating the figures

just viz-data    # runs this example (and the others) into viz/_data/
just viz         # re-renders docs/src/assets/figures/**
